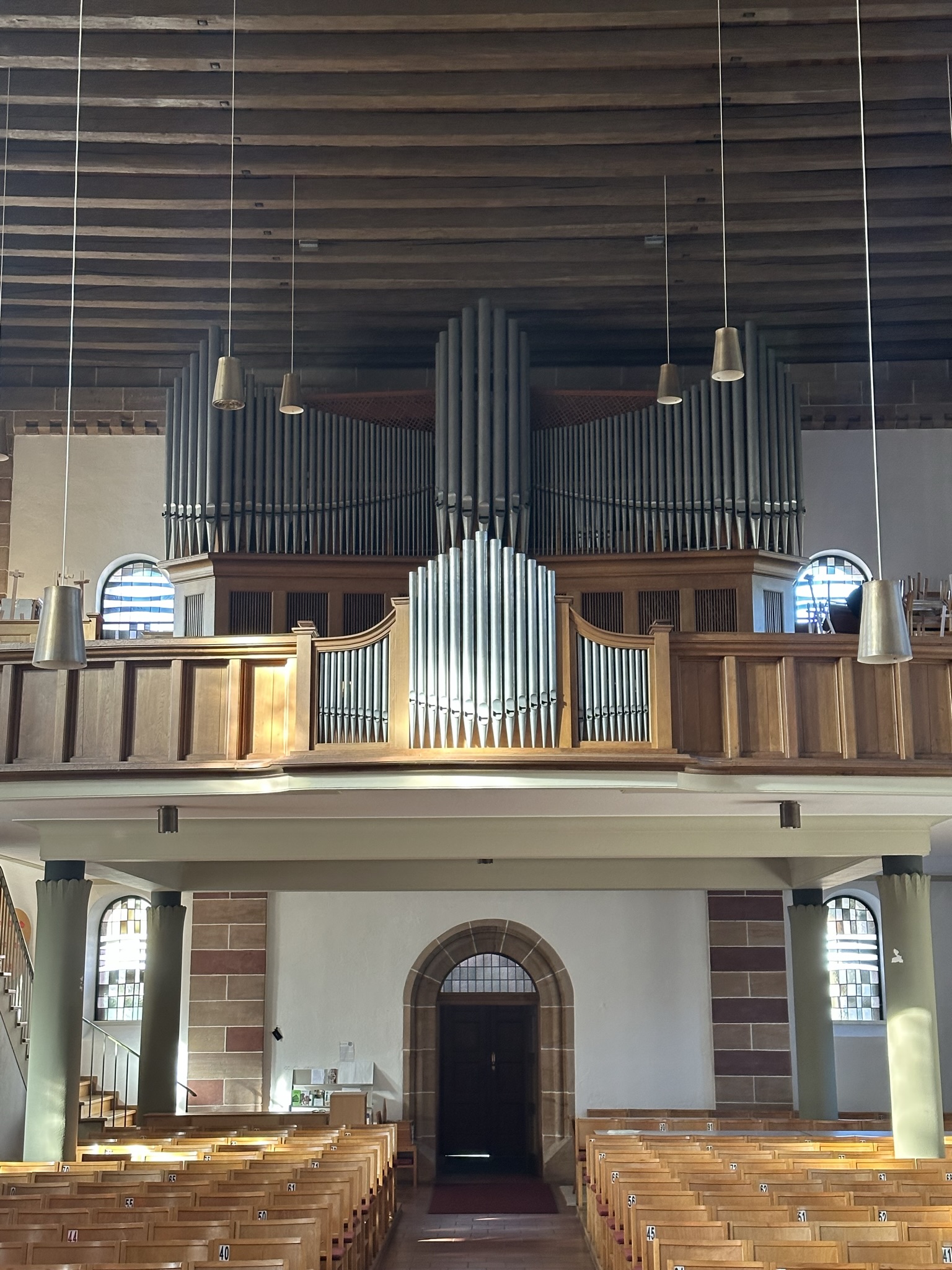

Renovation of the organ of the Protestant church in Waldfischbach
Builder: E. F. Walcker, Opus 3271
Speaking stops: 32 speaking stops, 1 wind attenuator, 3 vacant stops, Zimbelstern
Couplers: 7 standard couplers
Combination action / aids: 4 free combinations, HR (hand registration), individual reed stop cancels, 4th free combination assignable per manual, Tutti, Organo pleno, cancel piston
Keyboard compass: C–g³ / C–f¹
Windchest system: pouch windchests with standing pouch valves
Key action: electric
Stop action: electric
Voltage: 16 V, Tutti drop to 10 V
Case design: free-standing pipe façade, Rückpositiv with roof cover
Blower: Ventus, 2,800 rpm, 21 m³, 120 mm water column
Reservoir bellows: floating reservoir
Windchest bellows: 3 floating bellows
Wind pressure: 85 mm water column (III Manual)
Pitch: A = 438 Hz
Scope of work:
-
General cleaning
-
Renewal of valve pouches and membranes
-
Renewal of the electrical system in accordance with current VDE regulations
-
Re-voicing
